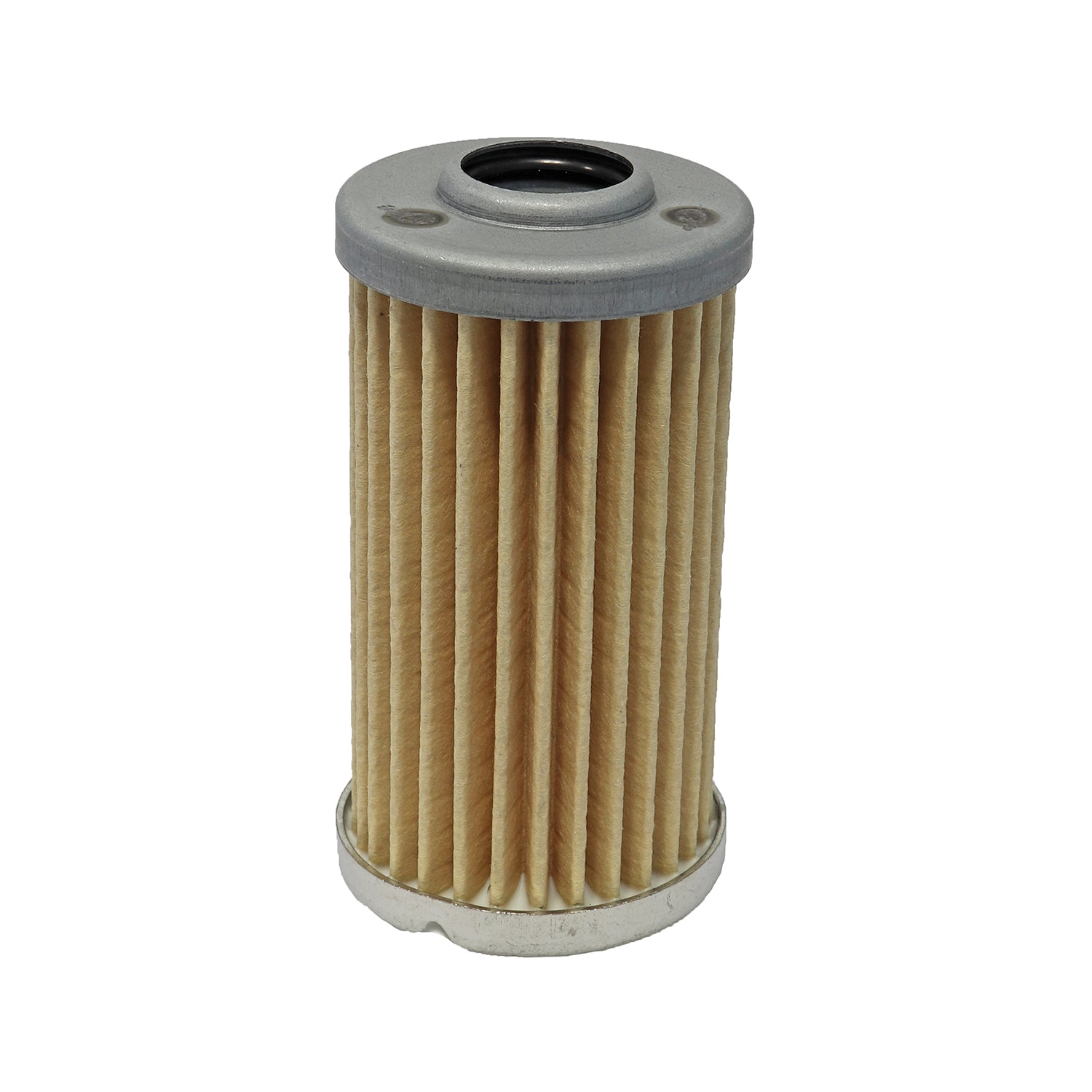

Stauff SS-008-K-10-B Replaces the Stauff SS008K10B

Stauff SS008K10B
Stauff SS008K10B

Stauff SS-008-K-10-B Replaces the Stauff SS008K10B

SS-008-K-10-B
Stauff
Stauff SS008K10B
Brand: Stauff
Sort by:
Description

Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 44,5 Inner Diameter (mm): 18,2 Length (mm): 84 Sealing: NBR, β ratio >2

Price Match
€47,95
UNITSPER UNIT
2 - 4€47,00
5 - 9€46,04
10 - + €45,08
0.13 kg
8421.99.90
Germany
Shipping Terms

Description

Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 44,5 Inner Diameter (mm): 18,2 Length (mm): 84 Sealing: NBR, β ratio >2

Specification

StylePressure Filter
Efficiency 110µ @ β2
Outer Diameter 43.0 mm
Inner Diameter 18.2 mm
Length 83.0 mm
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 30 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Genuine Product

Find out more
Stauff Brand Logo

Stauff Product

Genuine Stauff SS-008-K-10-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Pressure Filter
Outer Diameter 43.0 mm
Inner Diameter 18.2 mm
Length 83.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Nitrile
Temperature Range -30 - +100°C
