Stauff SL-090-E-05-B/4 Replaces the Stauff SL090E05B4
Stauff SL-090-E-05-B/4 Replaces the Stauff SL090E05B4
SL-090-E-05-B/4
Stauff
Stauff SL090E05B4
Stauff
Stauff SL090E05B4
Description

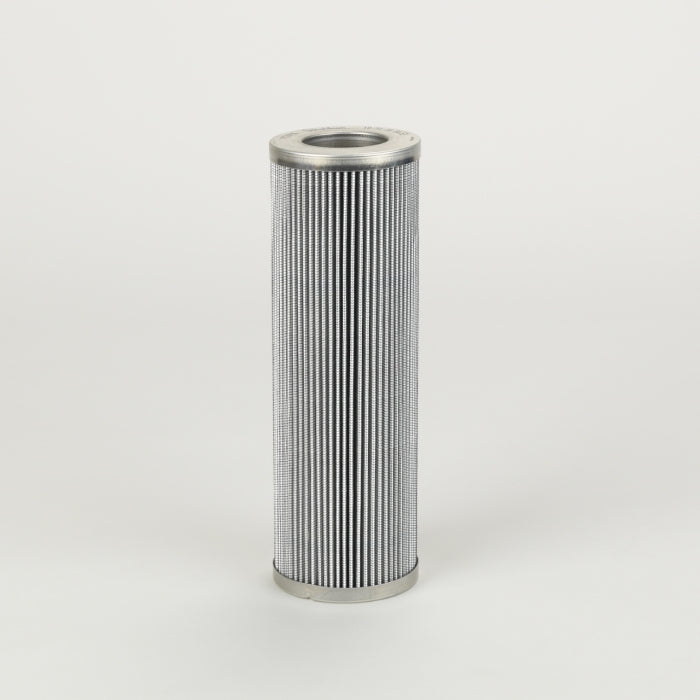

Replacement Filter Element for Pressure Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 82,5 Inner Diameter (mm): 47,5 Length (mm): 257 Sealing: NBR, β ratio >200
Brand:
Stauff
Sort by:
€135,95
Shipped Monday, 9 June
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | €133,24 |
| 5 - 9 | €130,52 |
| 10 - + | €127,80 |
0.8 kg
8421.99.90
Germany
Description
Replacement Filter Element for Pressure Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 82,5 Inner Diameter (mm): 47,5 Length (mm): 257 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 83.0 mm |
| Inner Diameter | 47.4 mm |
| Length | 255.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 30 BAR |
| Seal Material | Viton |
| Temperature Range | -25 - +120°C |
