MicroFit MFHSU70236 Alternative to the Schroeder SBFUE21920Z3B

SBFUE21920Z3B
SBFUE21920Z3B
Datasheet preview

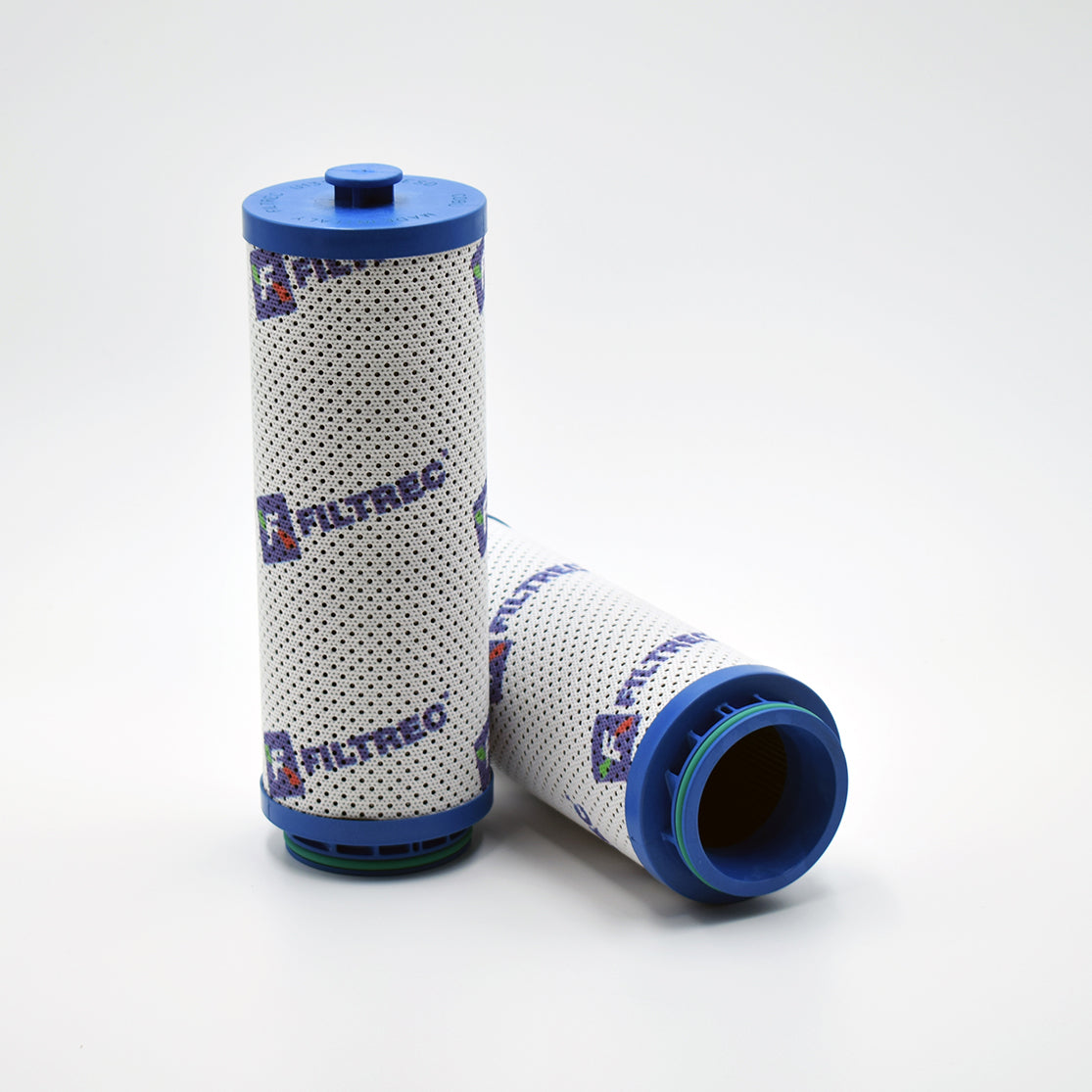

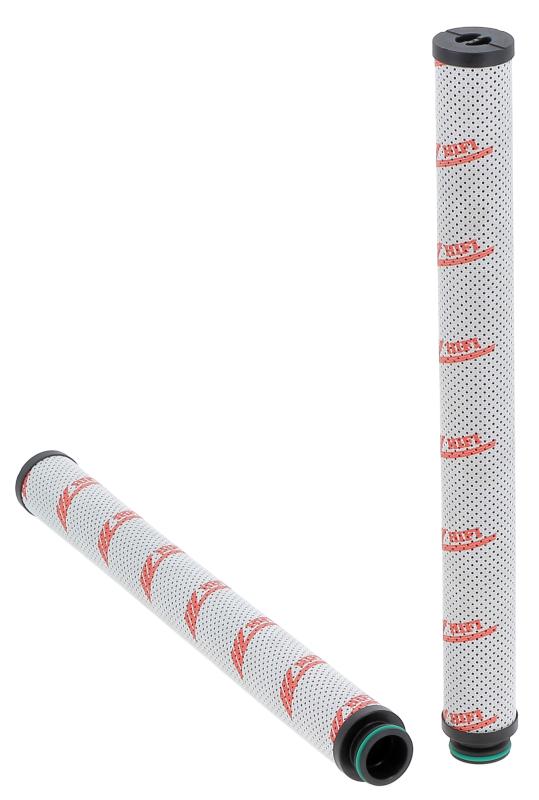

Representative product image Product image feedback

MicroFit® UltraGen III MFHSU70236 Suction Filter | Alternative to the Schroeder SBFUE21920Z3B

Brand: MicroFit
Price Match
916,00 zł
0.44 kg
0.0016 m³
United Kingdom
8421.99.90
0.44 kg
0.0018 m³
France
8421.99.90
0.0018 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70236 is the MICROFIT® approved replacement to the Schroeder SBFUE21920Z3B. Engineered and manufactured in Great Britain the MFHSU70236

Specification

StyleSuction Filter
MediaGlass Fiber (Anti-Static)
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 54.0 mm
Inner Diameter 42.5 mm
Length 536.0 mm
Seal MaterialViton
Temperature Range -25 - +120°C

Description

The MICROFIT® UltraGen III MFHSU70236 is the MICROFIT® approved replacement to the Schroeder SBFUE21920Z3B. Engineered and manufactured in Great Britain the MFHSU70236

Cross References

To the genuine Schroeder SBFUE21920Z3B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Suction Filter
Outer Diameter 54.0 mm
Inner Diameter 42.5 mm
Length 536.0 mm
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -25 - +120°C
