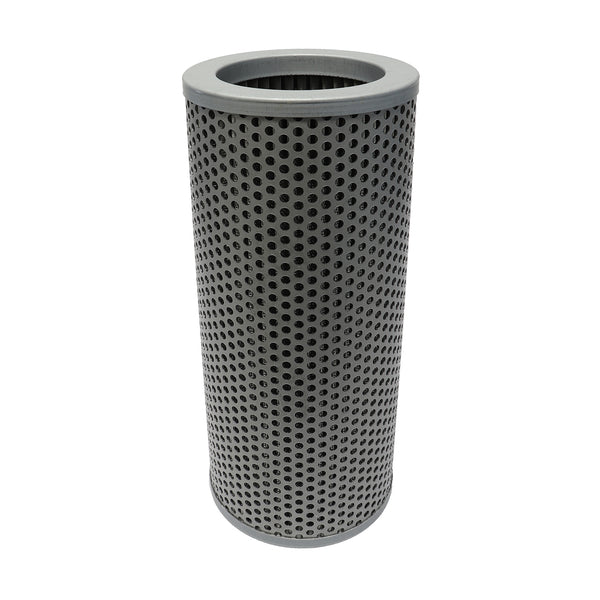

Stauff AD-033-B-80-B Replacement Suction Filter

Stauff AD-033-B-80-B
Stauff AD-033-B-80-B

Stauff AD-033-B-80-B Replacement Suction Filter

AD-033-B-80-B
Stauff
Description

Replacement Filter Element for Suction-Line Filters Micron Rating: 80 µm Material: Stainless Mesh Outer Diameter (mm): 89 Inner Diameter (mm): 59 Length (mm): 226 Sealing: NBR, β ratio >2

Brand: Stauff
Sort by:
Price Matched
€154,95
Shipped Tuesday, 3 June
UNITSPER UNIT
2 - 4€151,86
5 - 9€148,76
10 - + €145,66
0.69 kg
8421.99.90
Germany
Shipping Terms

Description

Replacement Filter Element for Suction-Line Filters Micron Rating: 80 µm Material: Stainless Mesh Outer Diameter (mm): 89 Inner Diameter (mm): 59 Length (mm): 226 Sealing: NBR, β ratio >2

Specification

StyleSuction Filter
Efficiency 1125µ
Outer Diameter 83.0 mm
Inner Diameter 59.0 mm
Length 227.0 mm
MediaWire Mesh
Flow DirectionIN-OUT
Temperature Range -25 - +120°C

Genuine Product

Find out more
Stauff Brand Logo

Stauff Product

Genuine Stauff AD-033-B-80-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Filter
Outer Diameter 83.0 mm
Inner Diameter 59.0 mm
Length 227.0 mm
Media Type Wire Mesh
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range -25 - +120°C
