Mann Filter HD 13 112 Replaces the Eppensteiner 12250P10G000M

12250P10G000M
12250P10G000M
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

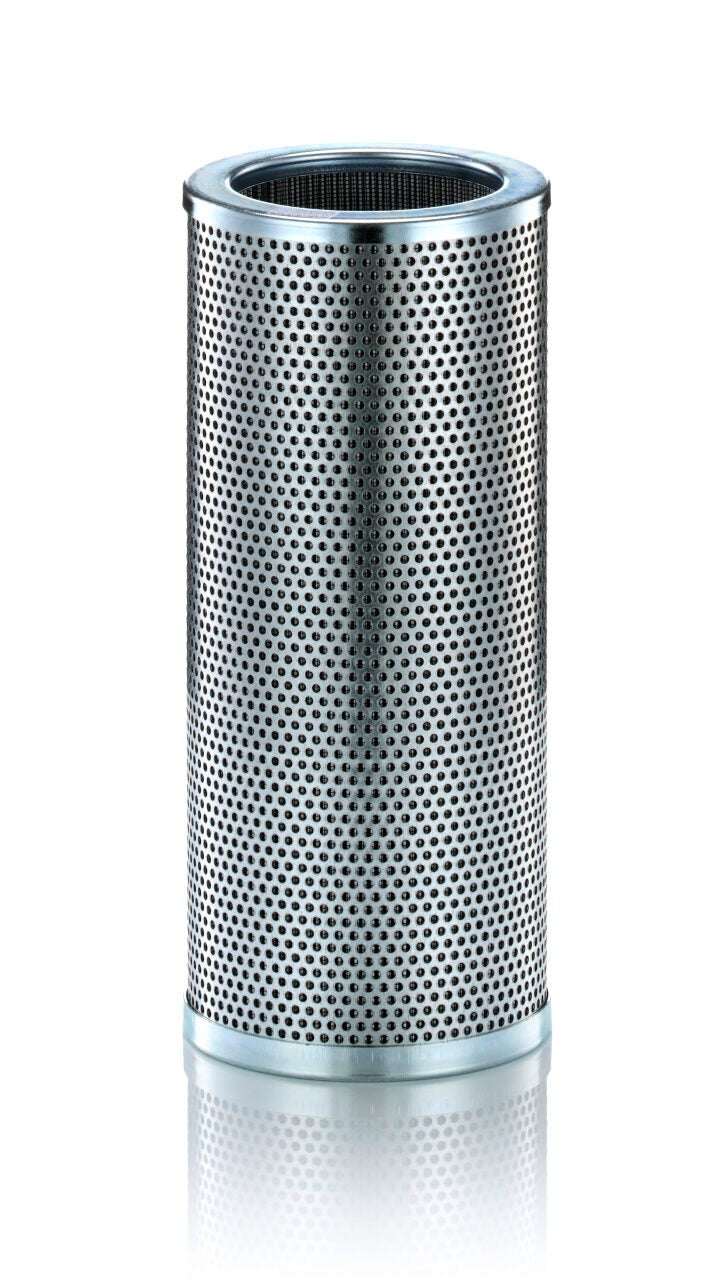

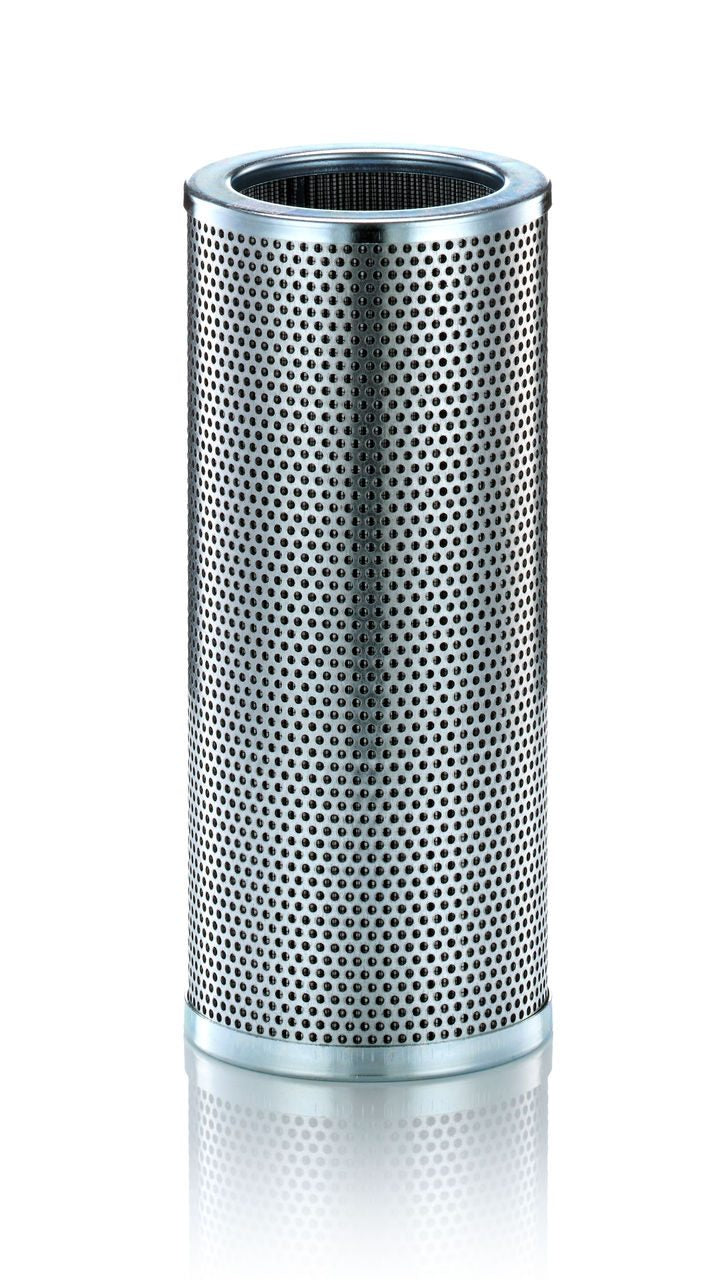

Mann Filter HD 13 112 Hydraulics | Replaces the Eppensteiner 12250P10G000M

Brand: Mann Filter
Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Price Match
543,00 zł
Germany
8421.99.90
1.78 kg
0.0046 m³
Italy
8421.99.90
Shipping Terms

Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Specification

StyleHydraulics
Dimension A 126.0 mm
Dimension B 92.0 mm
Dimension H 290.0 mm
Eppensteiner Brand Logo

Same Fit-Form & Function

As the Genuine Eppensteiner 12250P10G000M

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 126.0 mm
Inner Diameter 92.0 mm
Length 290.0 mm
Media Type Cellulose
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
