Specification

StylePressure Filter
MediaWire Mesh
Efficiency 1100µ
Outer Diameter 115.0 mm
Inner Diameter 65.0 mm
Length 153.0 mm
Δ Collapse Pressure 16 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C

Description

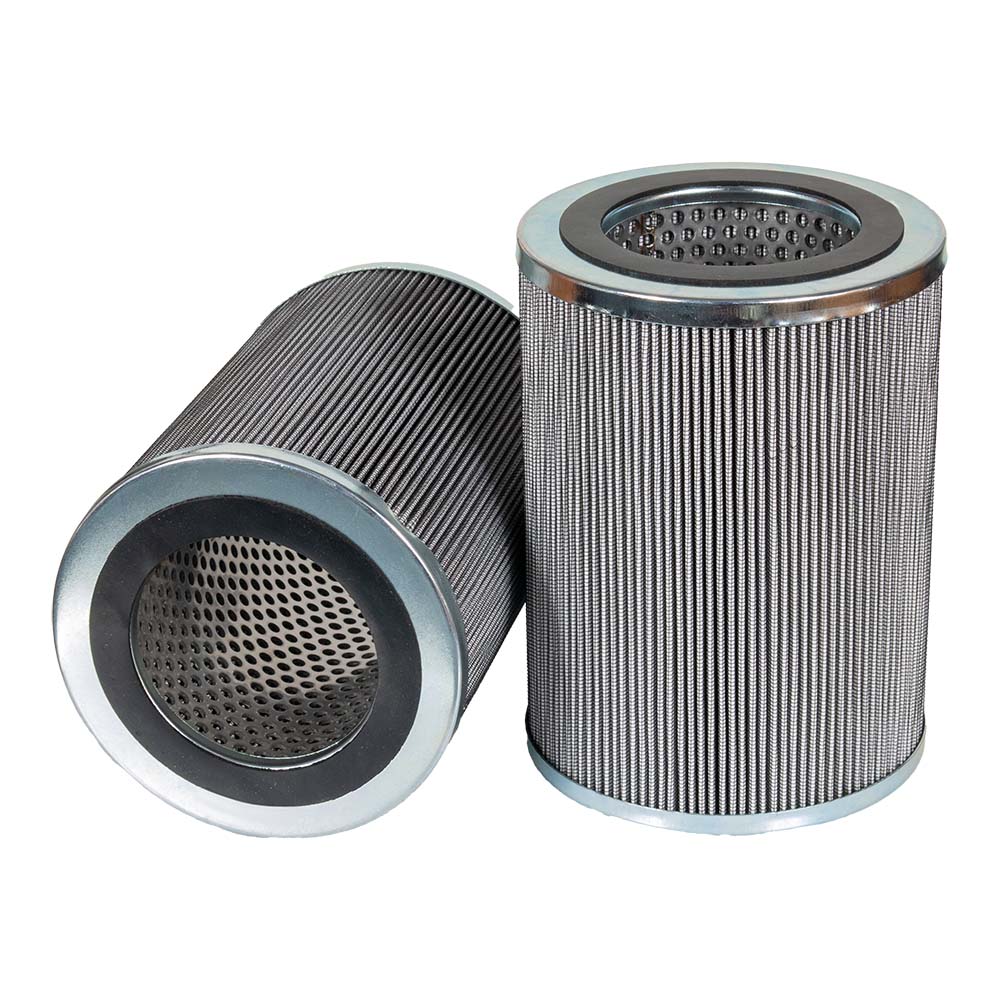

Fleetguard® ST1634 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker GO2921

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
100µ
Efficiency 2
Style Pressure Filter
Outer Diameter 115.0 mm
Inner Diameter 65.0 mm
Length 153.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 16 BAR
Seal Nitrile
Temperature Range -30 - +100°C
